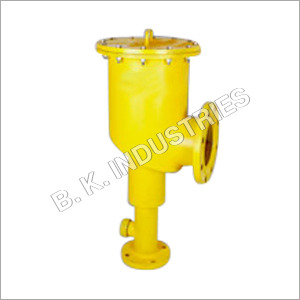

Backed by a team of experienced professionals, we are offering an extensive assortment of Foam Chamber. This chamber is used for the protection of fixed roof flammable liquid storage tanks and for low expansion foam system defined by NFPA 11. The offered chamber is manufactured using supreme class raw-material with the help of cutting-edge technology as per the set industry norms. This Foam Chamber is highly demanded in the market, due to draw air into the foam solution stream.
Features:
High durability
Longer life
Corrosion resistance
Sturdy construction
Specifications:
Foam Chambers are air aspirating devices used for the protection of fixed roof flammable liquid storage tanks. Foam chambers are widely used in low expansion foam system defined by NFPA 11.
Model | Inlet | Outlet | Flow @ 3 Bar |
283/50 | 50 NB | 80 NB | 75-225 LPM |
283/65 | 65 NB | 100 NB | 225-450 LPM |
283/80 | 80 NB | 150 NB | 450-900 LPM |
283/100 | 100 NB | 200 NB | 900-1800 LPM |
283/150 | 150 NB | 250 NB | 1800-2700 LPM |
Material | Mild Steel | ||
Vapour seal rupture pressure | 0.7 to 1.75 Bar | ||
Flange connection | ANSI B 16.5 150 LBS | ||
Finish | Red/Yellow Polyurethane Paint |
